Manage Any Layer-7 Protocol in Istio Service Mesh!

Website Github Online demo

Aeraki [Air-rah-ki] Mesh is an open-source service mesh I started about a year ago, and have been working on it till recently. Aeraki is the Greek word for ‘breeze’. While Istio connects microservices in a service mesh, Aeraki Mesh provides a non-intrusive, highly extendable way to allow Istio to support none-HTTP open-source and proprietary protocols. I hope this breeze can help Istio and service mesh sail a little further.

Lack of Protocols Support in Service Mesh

We are now facing some challenges with service meshes:

  • Istio and other popular service mesh implementations have very limited support for layer 7 protocols other than HTTP and gRPC.
  • Envoy RDS(Route Discovery Service) is solely designed for HTTP. Other protocols such as Dubbo and Thrift can only use listener in-line routes for traffic management, which breaks existing connections when routes change.
  • It takes a lot of effort to introduce a proprietary protocol into a service mesh. You’ll need to write an Envoy filter to handle the traffic in the data plane, and a control plane to manage those Envoys.

Those obstacles make it very hard, if not impossible, for users to manage the traffic of other widely-used layer-7 protocols in microservices. For example, in a microservices application, we may have the below protocols:

  • RPC: HTTP, gRPC, Thrift, Dubbo, Proprietary RPC Protocol …
  • Messaging: Kafka, RabbitMQ …
  • Cache: Redis, Memcached …
  • Database: MySQL, PostgreSQL, MongoDB …

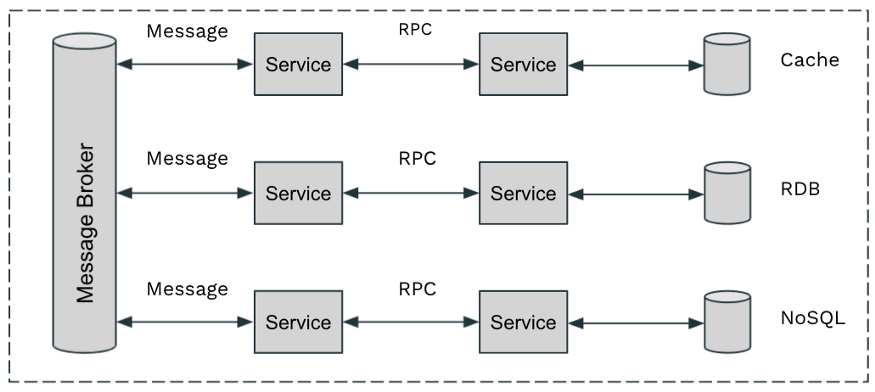

Common Layer-7 Protocols Used in Microservices

If you have already invested a lot of effort in migrating to a service mesh, of course, you want to get the most out of it — managing the traffic of all the protocols in your microservices.

Aeraki Mesh’s Approach

To address these problems, I created the open-source project, Aeraki Mesh, to provide a non-intrusive, extendable way to manage any layer 7 traffic in an Istio service mesh.

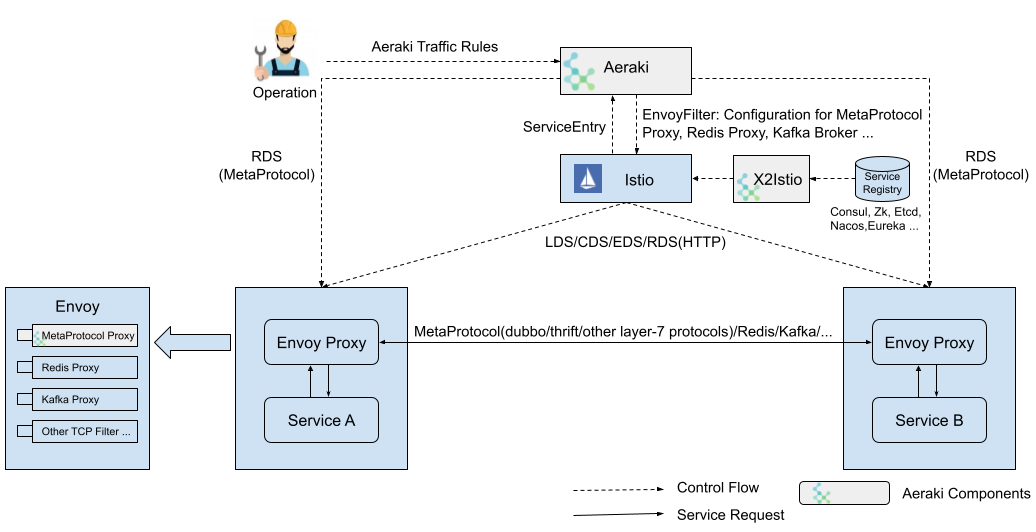

Aeraki Mesh Architecture

As this diagram shows, Aeraki Framework consists of the following components:

  • Aeraki: Aeraki provides high-level, user-friendly traffic management rules to operations, translates the rules to envoy filter configurations, and leverages Istio’s EnvoyFilter API to push the configurations to the sidecar proxies. Aeraki also serves as the RDS server for MetaProtocol proxies in the data plane. Contrary to Envoy RDS, which focuses on HTTP, Aeraki RDS is aimed to provide a general dynamic route capability for all layer-7 protocols.
  • MetaProtocol Proxy: MetaProtocol Proxy provides common capabilities for Layer-7 protocols, such as load balancing, circuit breaker, load balancing, routing, rate limiting, fault injection, and auth. Layer-7 protocols can be built on top of MetaProtocol. To add a new protocol into the service mesh, the only thing you need to do is implementing the codec interface and a couple of lines of configuration. If you have special requirements which can’t be accommodated by the built-in capabilities, MetaProtocol Proxy also has an application-level filter chain mechanism, allowing users to write their own layer-7 filters to add custom logic into MetaProtocol Proxy.

Dubbo and Thrift have already been implemented based on MetaProtocol. More protocols are on the way. If you’re using a close-source, proprietary protocol, you can also manage it in your service mesh simply by writing a MetaProtocol codec for it.

Most request/response style, stateless protocols can be built on top of the MetaProtocol Proxy. However, some protocols’ routing policies are too “special” to be normalized in MetaProtocol. For example, Redis proxy uses a slot number to map a client query to a specific Redis server node, and the slot number is computed by the key in the request. Aeraki can still manage those protocols as long as there’s an available Envoy Filter in the Envoy proxy side. Currently, for protocols in this category, Redis and Kafka are supported in Aeraki.

Deep Dive Into MetaProtocol

Let’s look into how MetaProtocol works. Before MetaProtocol is introduced, if we want to proxy traffic for a specific protocol, we need to write an Envoy filter that understands that protocol and add the code to manipulate the traffic, including routing, header modification, fault injection, traffic mirroring, etc.

For most request/response style protocols, the code for traffic manipulation is very similar. Therefore, to avoid duplicating these functionalities in different Envoy filters, Aeraki Framework implements most of the common functions of a layer-7 protocol proxy in a single place — the MetaProtocol Proxy filter.

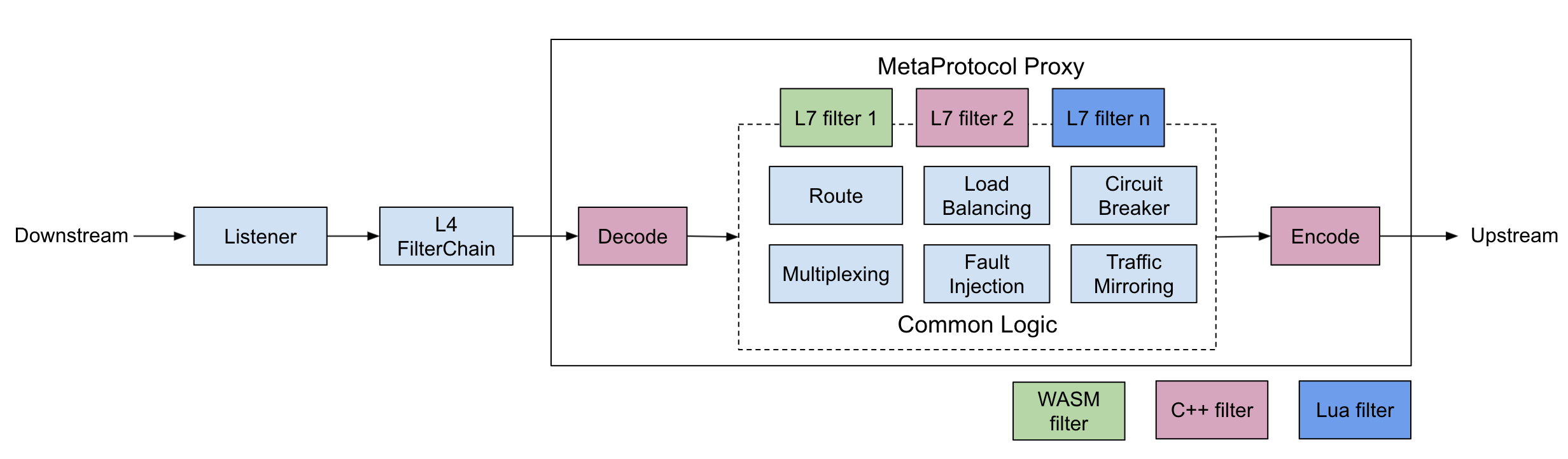

MetaProtocol Proxy

This approach significantly lowers the barrier to write a new Envoy filter: instead of writing a fully functional filter, now you only need to implement the codec interface. In addition to that, the control plane is already in place — Aeraki works at the control plane to provides MetaProtocol configuration and dynamic routes for all protocols built on top of MetaProtocol.

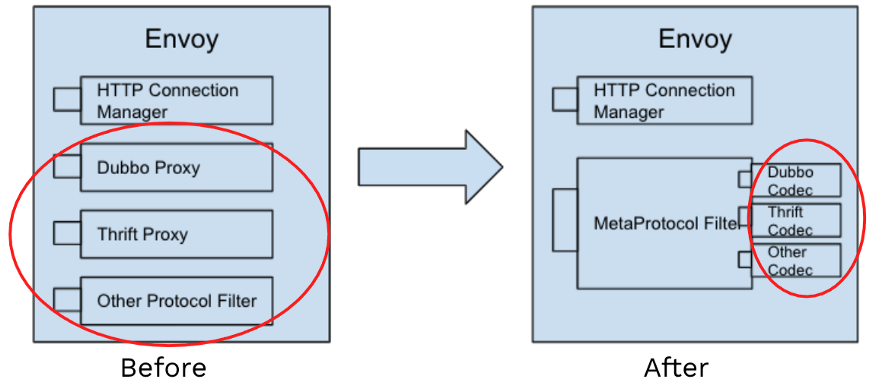

Writing an Envoy Filter Before and After MetProtocol

There are two important data structures in MetaProtocol Proxy: Metadata and Mutation. Metadata is used for routing, and Mutation is used for header manipulation.

At the request path, the decoder(the decode method of the codec implementation) populates the Metadata data structure with key-value pairs parsed from the request, then the Metadata will be passed to the MetaProtocol Router. The Router selects an appropriate upstream cluster after matching the route configuration it receives from Aeraki via RDS and the Metadata.

A custom filter can populate the Mutation data structure with arbitrary key-value pairs if the request needs to be modified: adding a header or changing the value of a header. Then the Mutation data structure will be passed to the encoder(the encode method of the codec implementation). The encoder is responsible for writing the key-value pairs into the wire protocol.

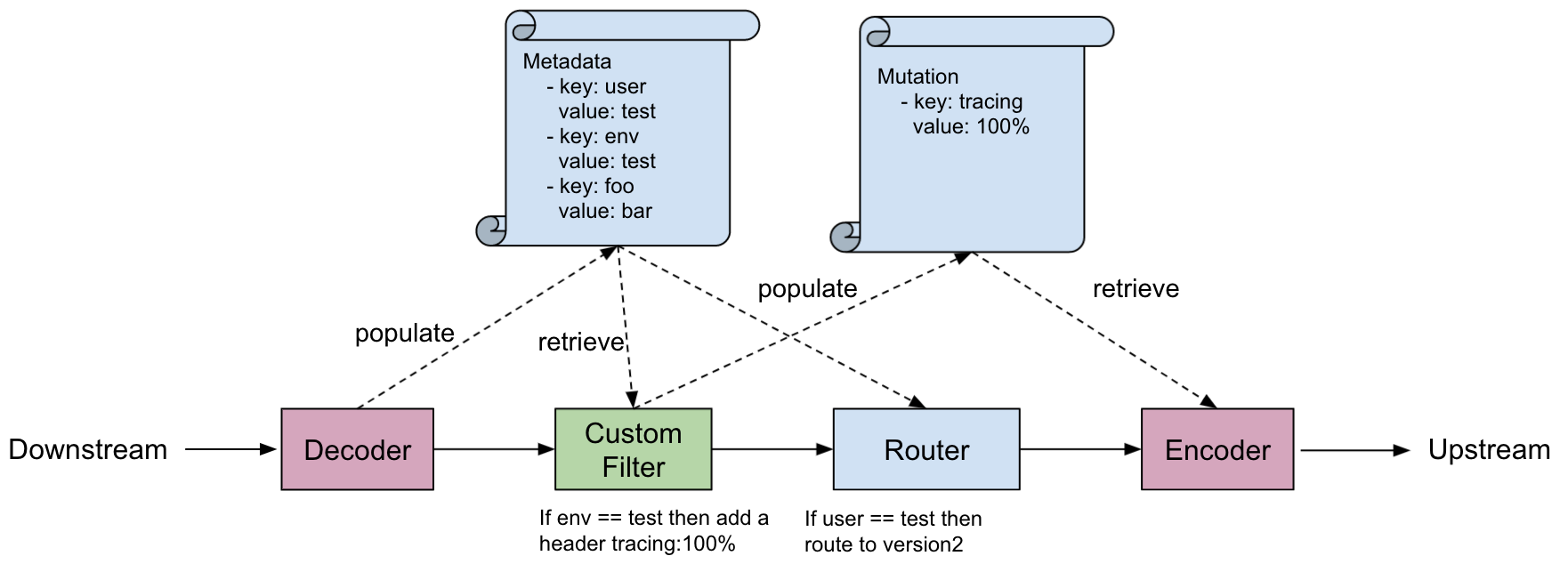

Request Path

The response path is similar to the request path, only in a different direction.

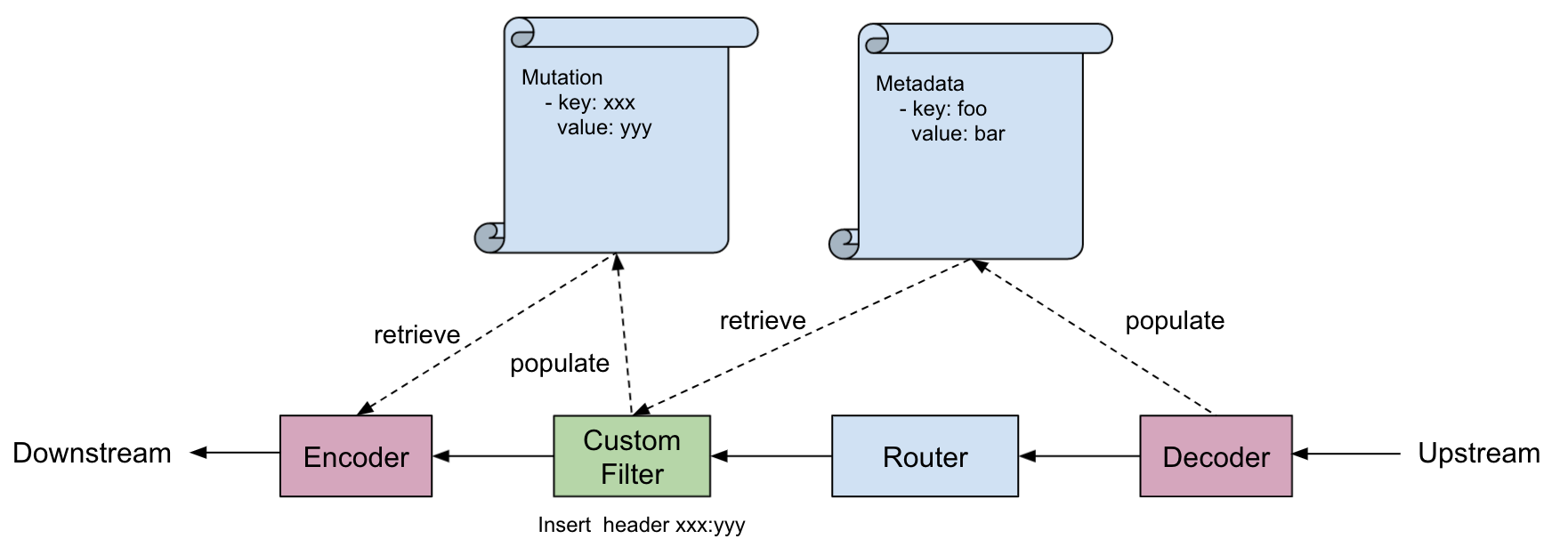

Response Path

An Example

If you need to implement an application protocol based on MetaProtocol, you can follow the below steps(use Dubbo as an example):

Data Plane

  • Implement the codec interface to encode and decode the protocol package. You can refer to Dubbo codec and Thrift codec as writing your own implementation.

  • Define the protocol with Aeraki ApplicationProtocol CRD, as this YAML snippet shows:

apiVersion: metaprotocol.aeraki.io/v1alpha1
kind: ApplicationProtocol
metadata:
  name: dubbo
  namespace: istio-system
spec:
  protocol: dubbo
  codec: aeraki.meta_protocol.codec.dubbo

Control Plane

You don’t need to implement the control plane. Aeraki watches services and traffic rules, generates the configurations for the sidecar proxies, and sends the configurations to the data plane via EnvoyFilter and MetaProtocol RDS.

Protocol selection

Similar to Istio, protocols are identified by service port prefix. Please name service ports with this pattern: tcp-metaprotocol-{application protocol}-xxx. For example, a Dubbo service port should be named tcp-metaprotocol-dubbo.

Traffic management

You can change the route via MataRouter CRD.

  • Route the Dubbo requests calling method sayHello to v2:
apiVersion: metaprotocol.aeraki.io/v1alpha1
kind: MetaRouter
metadata:
  name: test-metaprotocol-route
spec:
  hosts:
    - org.apache.dubbo.samples.basic.api.demoservice
  routes:
    - name: v2
    - match:
        attributes:
          method:
            exact: sayHello
      route:
        - destination:
            host: org.apache.dubbo.samples.basic.api.demoservice
            subset: v2
  • Send 20% of the requests to v1 and 80% to v2:
piVersion: metaprotocol.aeraki.io/v1alpha1
kind: MetaRouter
metadata:
  name: test-metaprotocol-route
spec:
  hosts:
    - org.apache.dubbo.samples.basic.api.demoservice
  routes:
    - name: traffic-spilt
      route:
        - destination:
            host: org.apache.dubbo.samples.basic.api.demoservice
            subset: v1
          weight: 20
        - destination:
            host: org.apache.dubbo.samples.basic.api.demoservice
            subset: v2
          weight: 80

Demo

Live Demo: kiali Dashboard

Live Demo: Service Metrics: Grafana

Live Demo: Service Metrics: Prometheus

Screenshot: Service Metrics: Screenshot: Service Metrics

Recored Demo: Dubbo and Thrift Traffic Management Thrift and Dubbo traffic management demo

Install

Pre-requirements:

  • A running Kubernetes cluster, which can be either a cluster in the cloud, or a local cluster created with kind/minikube
  • Kubectl installed, and the ~/.kube/conf points to the cluster in the first step
  • Helm installed, which will be used to install some components in the demo

Download Aeraki from the Github

git clone https://github.com/aeraki-mesh/aeraki.git

Install Istio, Aeraki and demo applications

aeraki/demo/install-demo.sh

Note: Aeraki needs to configure Istio with smart dns. If you already have an Istio installed and don’t know how to turn on smart dns, please uninstall it. install-demo.sh will install Istio for you.

Open the following URLs in your browser to play with Aeraki and view service metrics

  • Kaili http://{istio-ingressgateway_external_ip}:20001
  • Grafana http://{istio-ingressgateway_external_ip}:3000
  • Prometheus http://{istio-ingressgateway_external_ip}:9090

You can import Aeraika demo dashboard from file demo/aeraki-demo.json into the Grafana.

Talks

Contact

  • Mail: If you’re interested in contributing to this project, please reach out to [email protected]
  • Wechat Group: Please contact Wechat ID: zhao_huabing to join the Aeraki Wechat group
  • Slack: Join Aeraki slack channel
